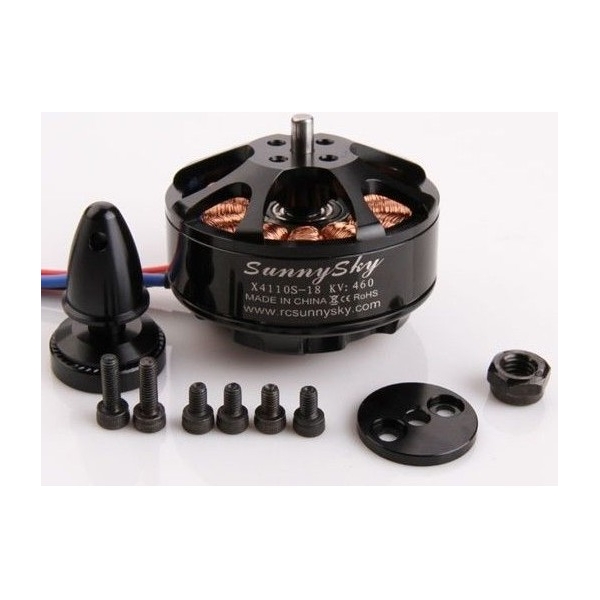

2 Sets Multicopter disc motor SUNNYSKY X4110S 340KV 400KV 460KV 580KV 680KV Brushless Motor Disk T type for Multi-rotorHexacopter FPV
Notes: There are five KV type Sunnysky X4110S Motor, the 340KV 400KV 460KV 580KV 680KV, When you place the order, pls let us know which KV type you need, pls remark it.

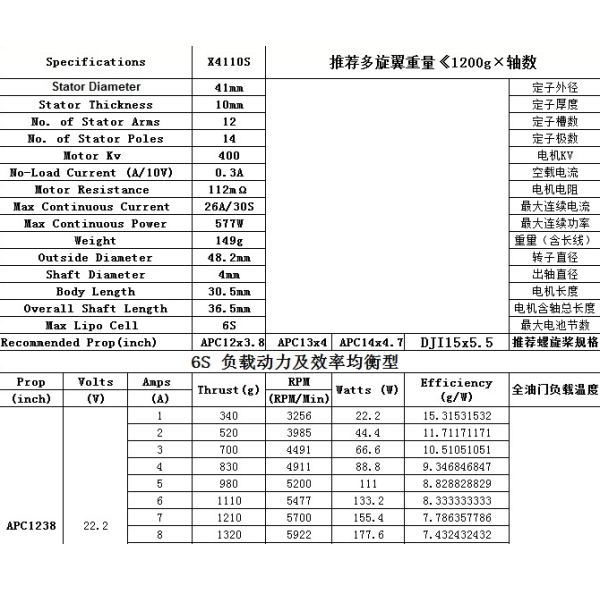

Specifications:
- Model: X4110S
- Stator Outer Diameter: 41mm
- Stator thickness: 10mm
- Structure: 12N14P
- KV: 340KV 400KV 460 580KV 680KV
- Empty load current: 0.4A
- Resistance: 102m
- Max.continuous current: 26A/30S
- Max.continuous power: 577W
- Weight: 148g(with cable)
- Rotor Diameter: 48.2mm
- Outer shaft diameter: 4mm
- Length: 30.5mm
- Total length: 36.5mm
- Max.battery cell: 6S
- Recommanded propeller: APC12x3.8
Package Included:Prop Volts Amps Thrust(g) RPM Watts (W) Efficiency

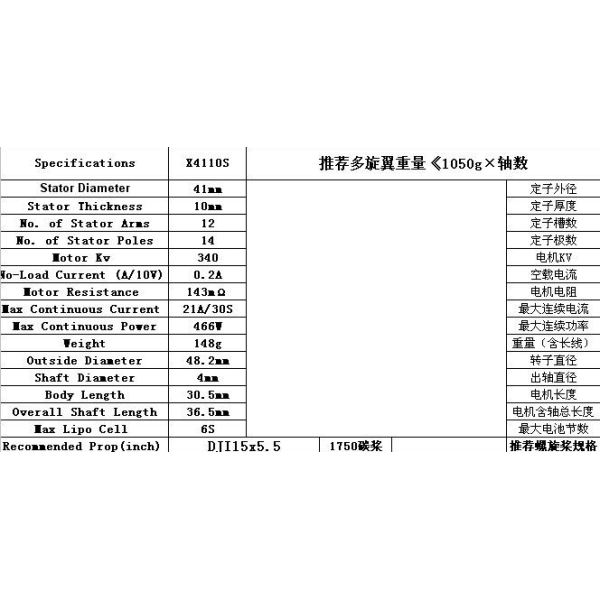

(g/W)Temperature (inch) (V) (A) (RPM/Min) APC1238 22.2 1 320 3215 22.2 14.41441441 2 500 3990 44.4 11.26126126 3 650 4475 66.6 9.75975976 4 820 4842 88.8 9.234234234 5 940 5160 111 8.468468468 6 1050 5400 133.2 7.882882883 7 1140 5700 155.4 7.335907336 8 1260 5900 177.6 7.094594595 9 1380 6111 199.8 6.906906907 10 1490 6282 222 6.711711712 12 1670 6635 266.4 6.268768769 15 1910 7000 333 5.735735736 18 2100 7290 399.6 5.255255255 21 2320 7600 466.2 4.976404976 24.6 2520 7900 546.12 4.614370468 76° 2 sets motor includedX4110S kv340 recommend 6 s collocation 15-17 inches carbon paddle, high efficiency and could be used to need Gao Hang 6 axis around 800 wheelbase powered aircraft.
X4110S kv400 recommend 6 s collocation APC1447 dji1555 OARS, sufficient power, high efficiency and other motor can replace 4114 level.

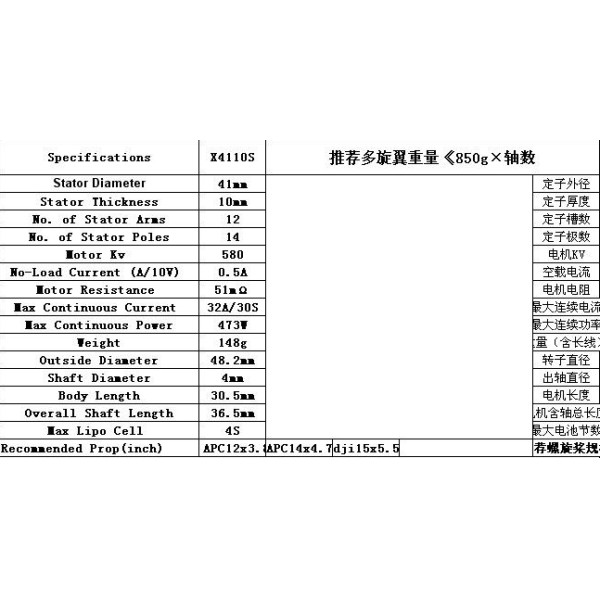

X4110S kv580 recommended 12 to 15 inches of 4 s collocation, flexible collocation, can obtain good dynamic, and with a 15 "there won't be underpowered performance. Reduce the cost of upgrade replacement power for the user

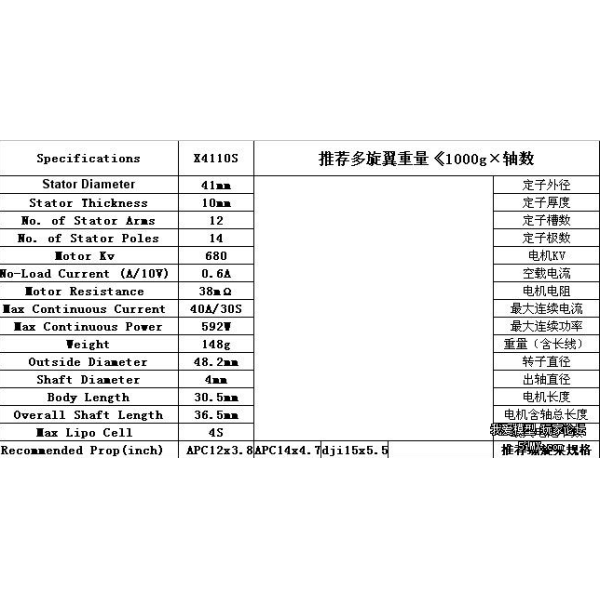

X4110 kv680 recommend 4 s collocation APC1238. Normally recommended rotor weight more the 1000 g * number axis. In plateau environment, for the 4 s wheelbase 550 4 axis 2.5 kg of aircraft, 650-700 wheelbase 6 axis 3.6 kg of aircraft

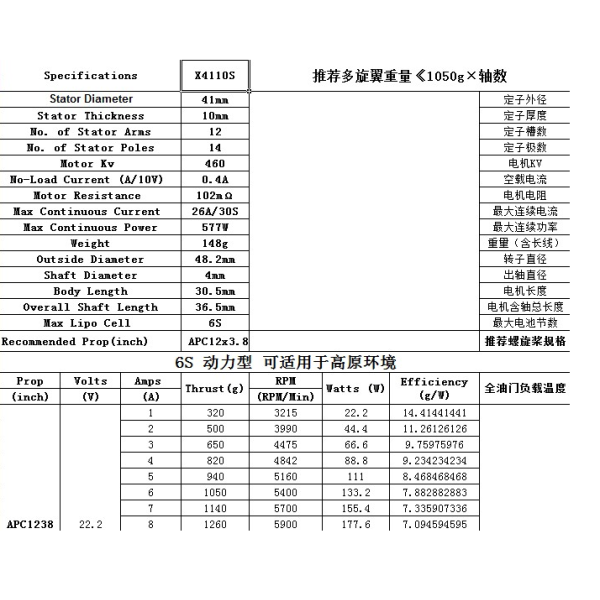

APC1238 X4110S kv460 6 s collocation, power strong, under normal circumstances, recommend the rotor weight more the number of 1050 g x axis. In plateau environment, can be used as 4 of 6 s wheelbase 550 axis 2.7 kg of aircraft, 650-700 6 axis 4 kg vehicle wheelbase, power reserve
