  • 2pcs Hobbywing Platinum PRO 30A/30amp OPTO ESC for Multicopters - 2S to 6S Type A with wire motor connectors/Type B Type B with socket motor connectors
2pcs Hobbywing Platinum PRO 30A/30amp OPTO ESC for Multicopters - 2S to 6S Type A with wire motor connectors/Type B Type B with socket motor connectors

2pcs Hobbywing Platinum PRO 30A/30amp OPTO ESC for Multicopters - 2S to 6S Type A with wire motor connectors/Type B Type B with socket motor connectors

SKU:SDHP010
Weight:1.00kg
0 reviews( write a review )
Share
Price:
US$HK$CA$AU$£€
44.99
Availability:In Stock
Shipping:Free Shipping
Quantity:
Description
Shipping Methods

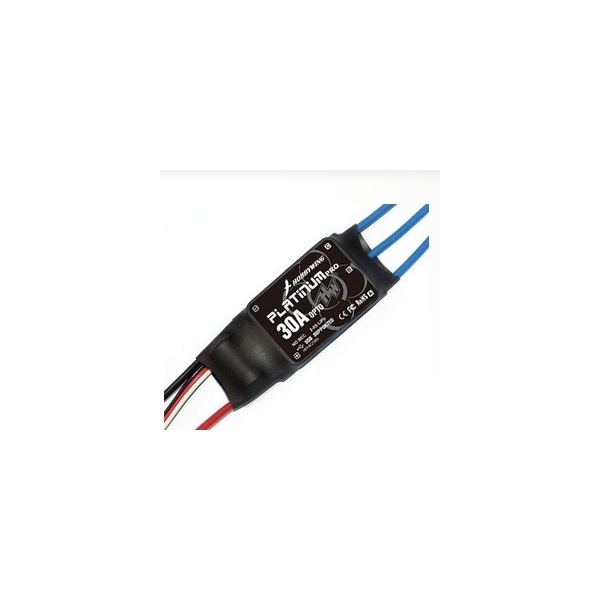

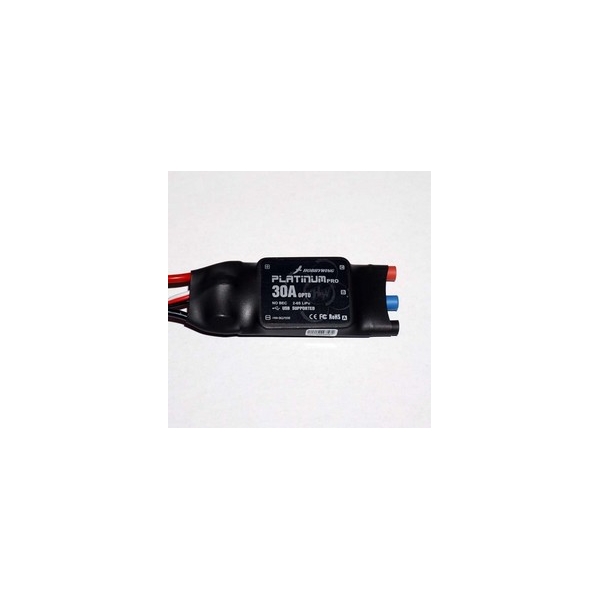

2pcs Hobbywing Platinum PRO 30amp OPTO ESC for Multicopters - 2S to 6S

Note: There are two type, type A or type B, the type A is  with wire motor connectors, and the type B is with socket motor connectors. When you place the order, pls let us know which type you need, pls remark it.


Excellent choice for multicopter use with upto 6S LiPos. Please note that this is an OPTO isolated ESC and does not supply power for receiver and servos.

2pcs included

Platinum-30A-OPTO-PRO" ESC is the best choice for multi-rotor aircraft.

1 Specification

1.1 Output: Continuous 30A, burst 40A up to 10 seconds.
 1.2 Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.
1.3 BEC: Not available.
 1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.
 1.5 Control Signal Transmission: Optical/electrical coupled system.
 1.6 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
 (BLM = BrushLess Motor)
 1.7 Size: 55mm (L) * 25mm (W) * 12mm (H).
 1.8 Weight: 31g.

2 Features

2.1 High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
 2.2 Optimized for multi-rotor aircraft.
 2.3 Smooth, linear, quick and precise throttle response.
 2.4 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
 2.5 The throttle signal is transfered through optical/electrical coupled system to avoid electromagnetic interference.
 2.6 The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
 2.7 User programmable.
2.8 Multiple program methods supported: transmitter stick, Digital LED Program Card, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
