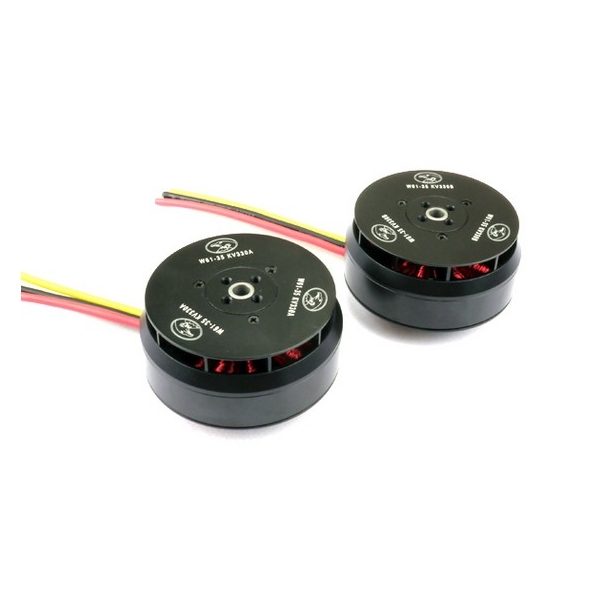

2 sets multicopter disc motor Hengli HL W61-35 330kv 3.5KG 950W Outrunner Brushless Disk Type Motor for Multi-rotor (6S, 3.5Kg)2PCS

2 sets multicopter disc motor Hengli HL W61-35 330kv 3.5KG 950W Outrunner Brushless Disk Type Motor for Multi-rotor (6S, 3.5Kg)2PCS

SKU:SDMHL001
Weight:1.50kg
5 reviews( write a review )
Price:
US$HK$CA$AU$£
229.99
Availability:In Stock
Shipping:Free Shipping
Quantity:
Description
Shipping Methods

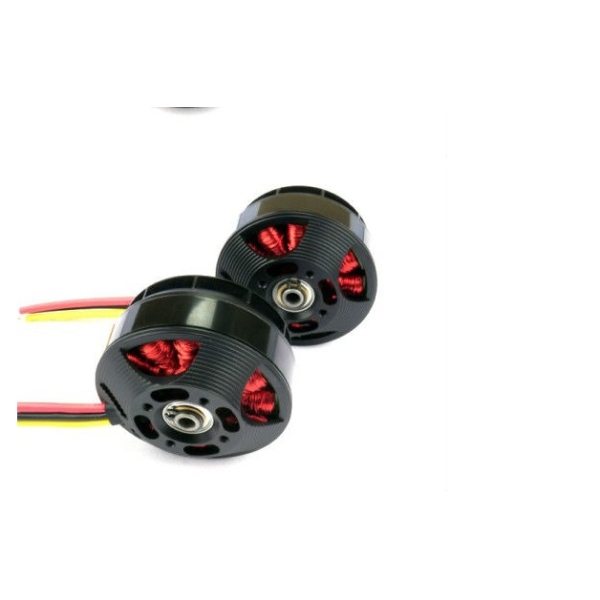

2pcs multicopter disc motor Hengli HL W61-35 330kv 3.5KG 950W Outrunner Brushless Disk Type Motor for Multi-rotor (6S, 3.5Kg)2PCS


Features

W61-35 motor of several major features:

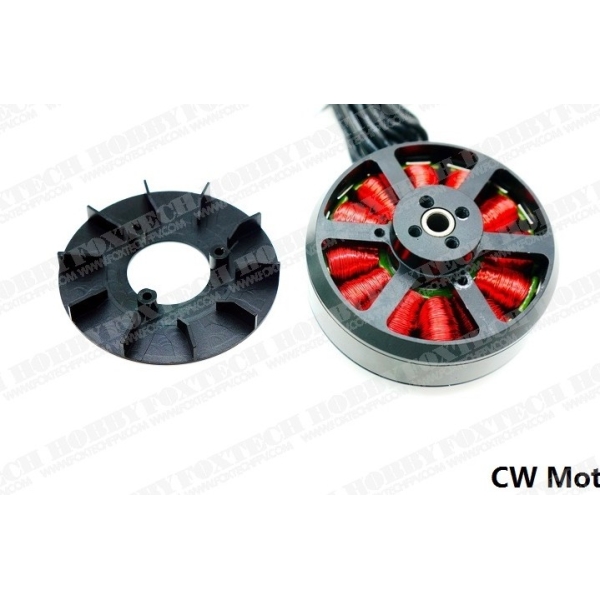

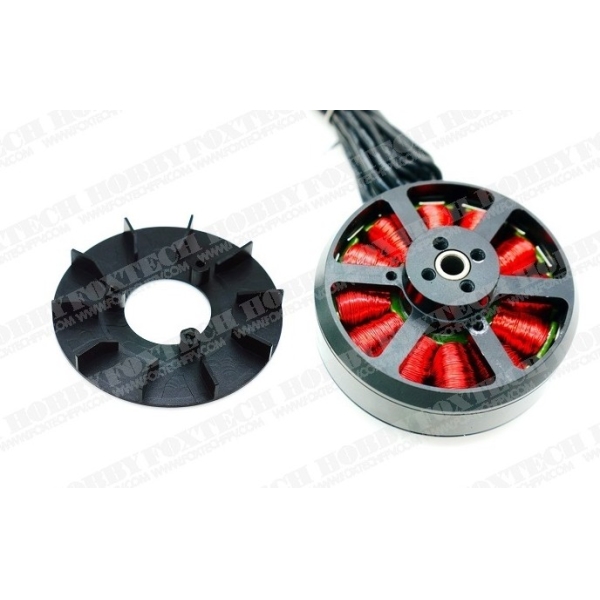

1: motor built-in cooling function, make the motor work in a relatively lower temperature rise, improve efficiency.
2: motor using EZO imported bearings, make motor with low noise, and high service life.
3: motor use high temperature resistant high quality red enameled wire.
4: motor design classic atmosphere, base design inspiration comes from Chinese terrace culture.

Suitable for large film aerial rotor system and spraying system.
The motor a set of contains two points are ZhuanMa and inversion of the motor, the design, can make the motor fan get the maximum heat dissipation performance. Increase the reliability of the flight. Industry is the largest one of the many rotor motor.

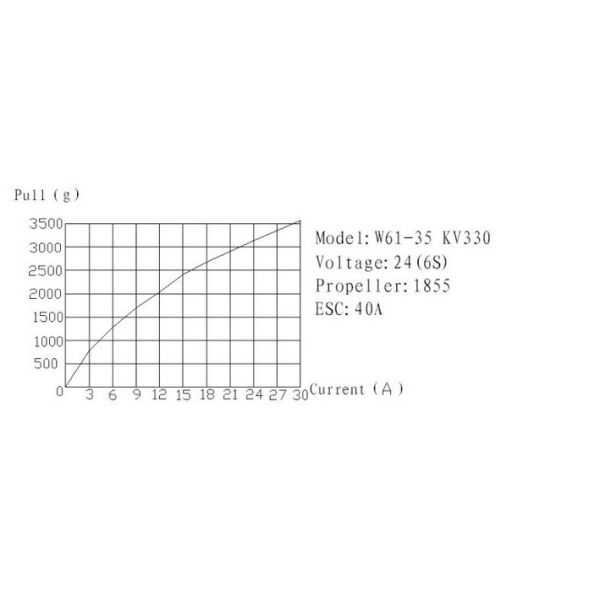

The motor using 6 s lithium battery, in 30 a electricity flow can reach 3.7 KG.

General configuration and take-off weight recommendation:
1. 4 rotor take-off weight 8-10 kg 15-20 ah lithium electricity flight time 10-15 minutes at all levels SLR 5 d2, d3, 1 dx 1 dc
2. 6 rotor take-off weight 12 to 15 kg 20-30 ah lithium electricity flight time 10-15 minutes RED film equipment
3. 8 rotor take-off weight 16-20 kg 30-40 ah lithium electricity flight time 10 to 15 minutes for the huge pesticide spraying, film and television camera



Product Details

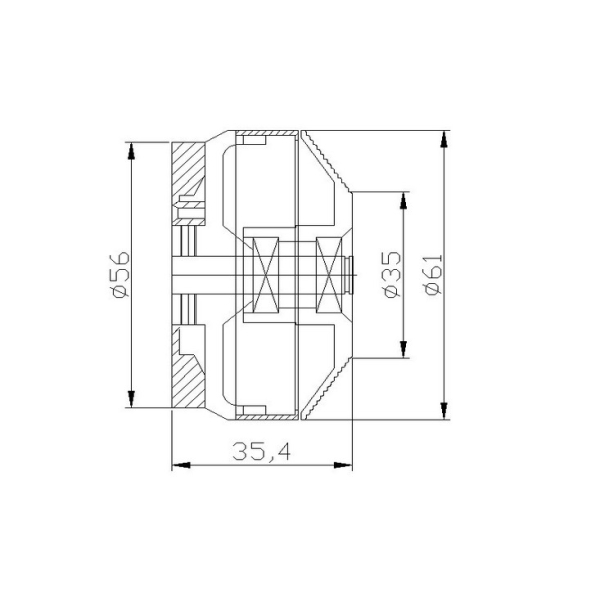

Product name: constant force W61 - more than 35, 330 kv large rotor disc motor/two pack
Manufacturer number: W61-35
330 KV motor:
No load current: 1 a / 24 v
Only the net weight: 238 g
Support for lithium electricity: 6 s
39 a maximum current:
Normal working current: < 31 a
The maximum power: 950 w
The motor resistance: 0.052 Ω

Recommended electric adjustment: platinum 40 a good company

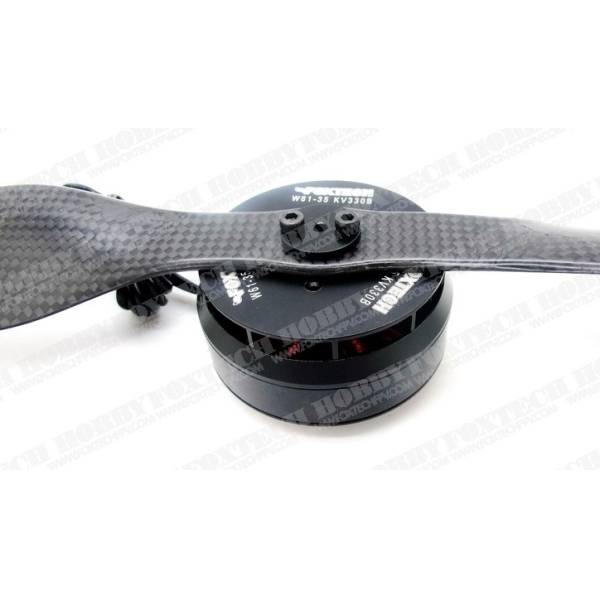

Recommend a propeller: 18 * 5.5 carbon fiber paddle

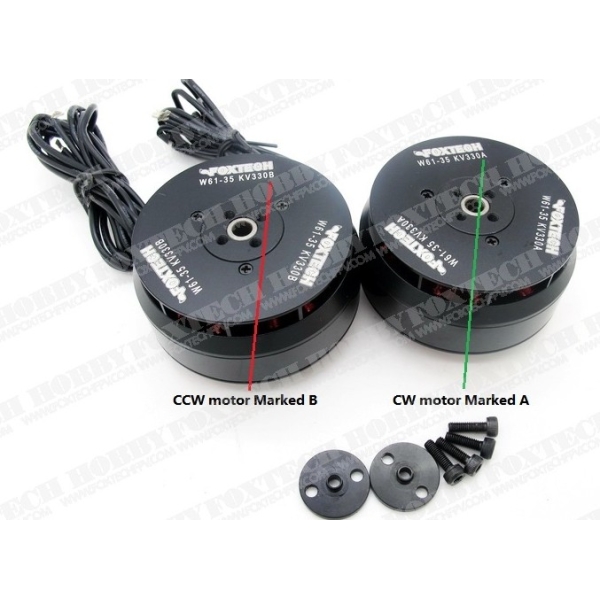

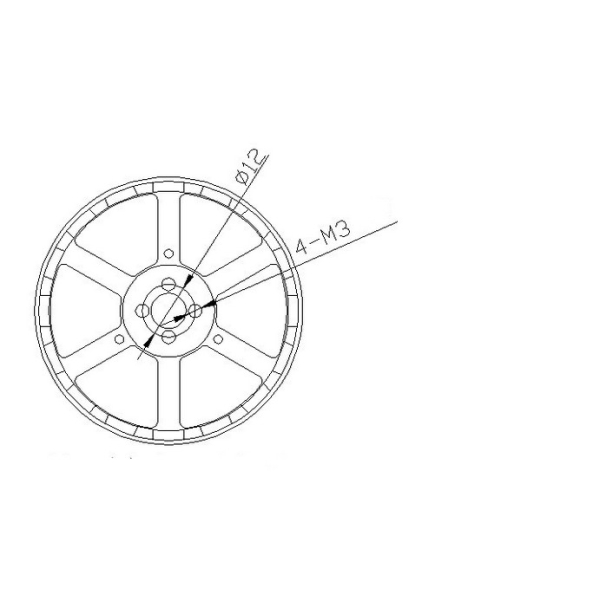

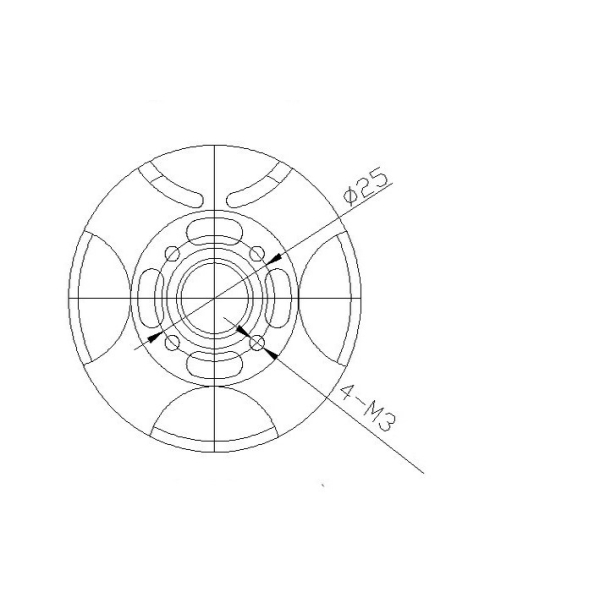

Install: W6135 KV330A for CW propeller/W6135 KV330B for CCW propeller


Item Packing

- motor X 2
- propeller tablet X 2
- fixed screw propeller X 4
