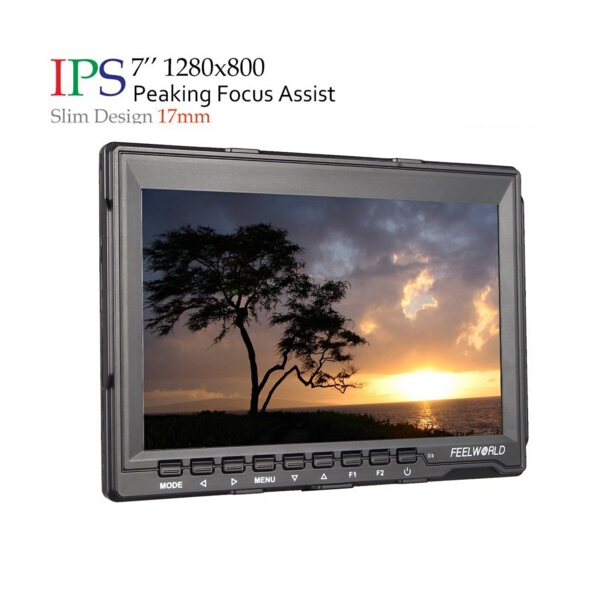

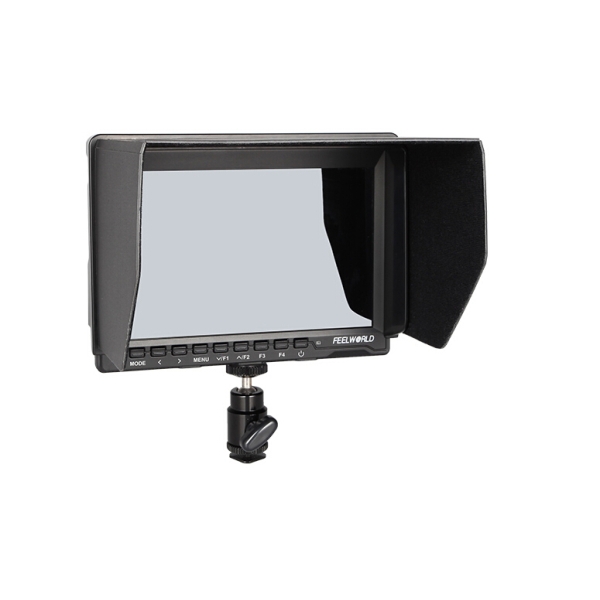

Feelworld 7” Slim Camera HD IPS 1080P LCD Monitor HDMI Input Peaking Filter Monitor 7" FW 759P FPV MonitorFeatures:
* Wide view angle IPS panel,Ultra HD1280x800 resolution
* The enhanced 400cd/m2 backlight and 800:1 color contrast ratio

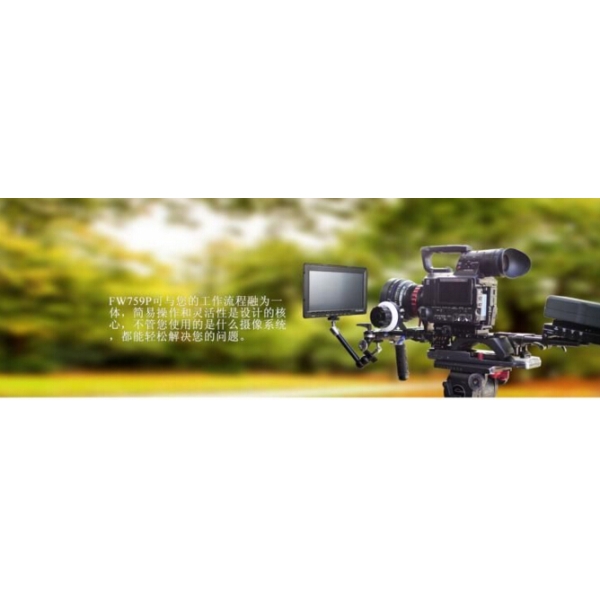

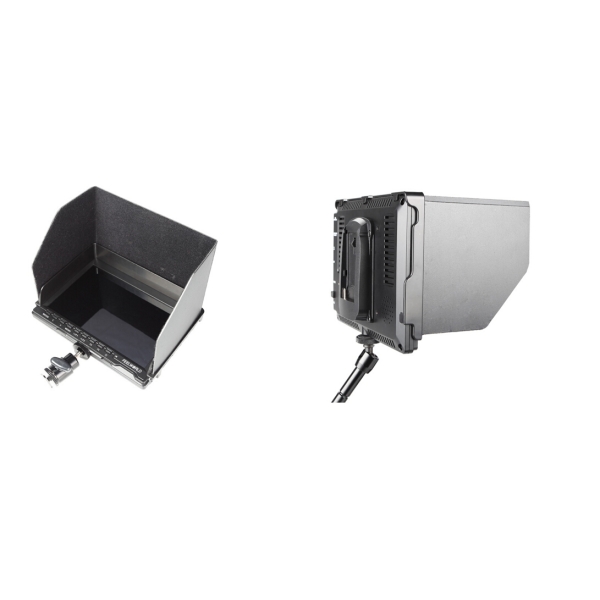

* Slim design 17mm Portable Light compatible for Steadycam,DSLR Rig,Camcorder Kit,Handheld Stabilizer,Video Camera Crane
* Peaking Focus Assist

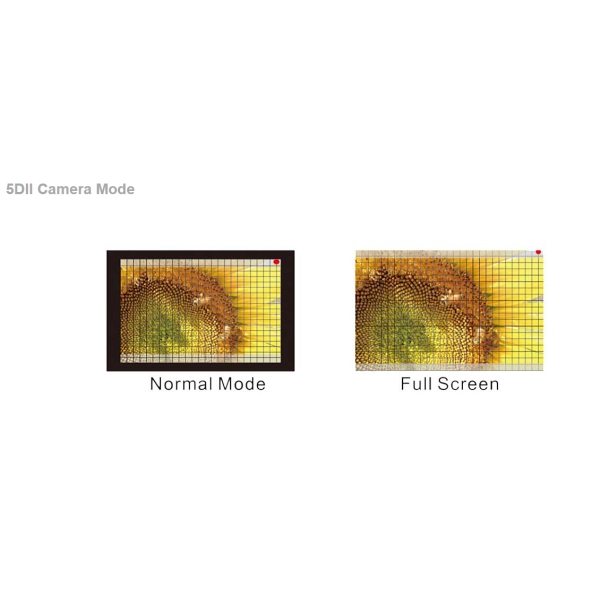

* Camera 5D II Mode
* Check Field:(Red,Green,Blue,Mono)

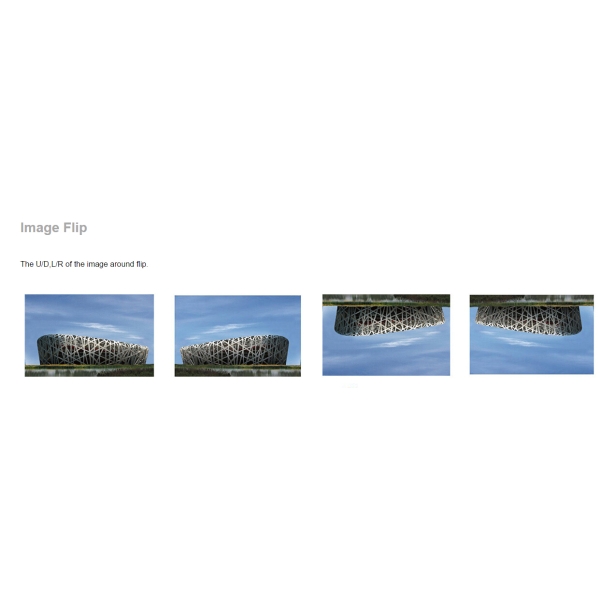

* Image Flip(U/D,L/R)

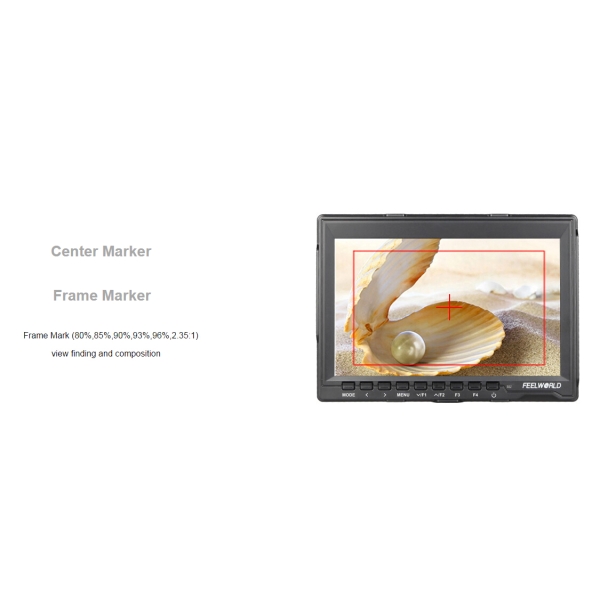

* ScreenMarker (80%,85%,90%,93%,96%,2.35:1)
* Centre Marker
* 4:3&16:9 image adjustable
* Pixel-to-Pixel
* Image Freeze

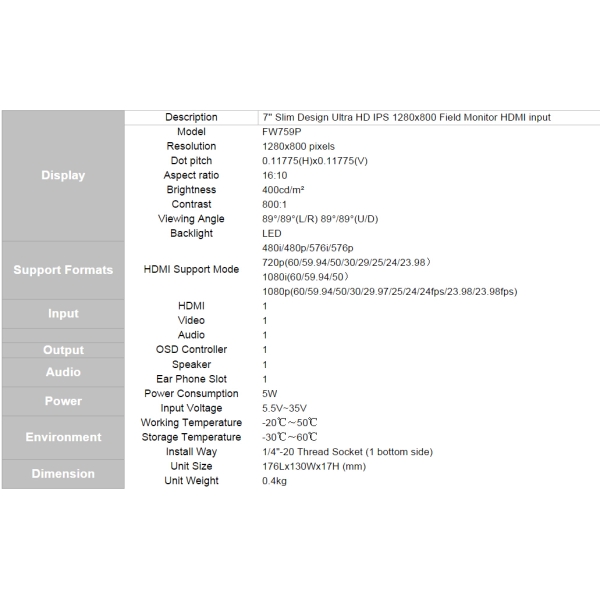

Specification:
- Resolution: 1280x800 pixels
- Dot pitch: 0.11775(H)x0.11775(V)
- Aspect ratio: 16:10
- Brightness: 400cd/m²
- Contrast: 800:1
- Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
- Backlight: LED
- Inputs:Video,Audio,HDMI
- Outputs:Wire remote OSD controller,Built-in Speaker,3.5mm Audio
- HDMI Support Mode
480i/480p/576i/576p
720p(60/59.94/50/30/29/25/24/23.98）
1080i(60/59.94/50）
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
- Power Consumption: 5W
- Input Voltage:5.5V~35V
- Working Temperature: -20℃～50℃
- Storage Temperature: -30℃～60℃

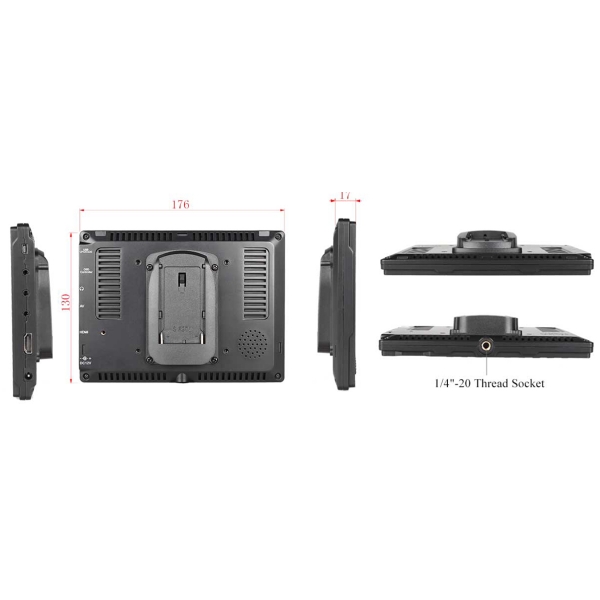

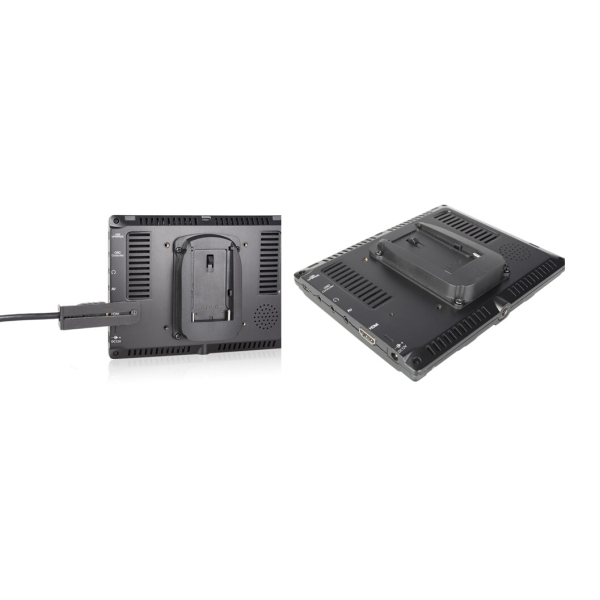

- Install Way: 1/4"-20 Thread Socket (1 bottom side)
- Unit Size: 176Lx130Wx17H (mm)
- Unit Weight: 0.4kg
